Feeding particle size:15-30mm
Productivity: 2-120t
Application field:Suitable for ore powder making, coal powder making and other powder processing of raw ore, gypsum mine, coal, etc.

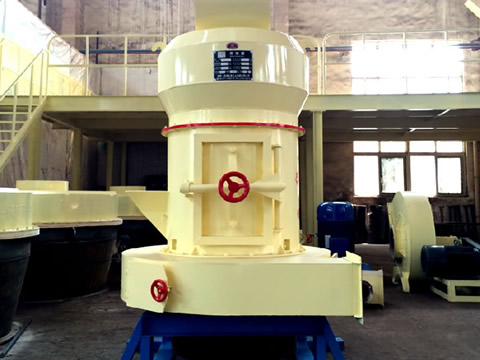

Advantages:As the classic powder grinding machine, Raymond mill is totally suitable for grinding dolomite and it can be ground to 600 meshes to satisfy the general grinding requirement of dolomite.
Dolomite grinding mill is also known as dolomite grinding machine, dolomite pulverizer, and dolomite pulverizing mill. Raymond mill is a common powder grinding machine which is suitable for non flammable materials with hardness less than 9.3 and water content less than 6% like Calcite, potassium feldspar, talc, barite, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation materials, etc in mineral, chemical, building and other industries.
Dolomite and crystal belong to carbonate minerals of trigonal system and they are the raw materials for extracting magnesium and magnesium oxide. Dolomite which results from marine sedimentary results usually exists with siderite and lime rock. In the lacustrine sediments, dolomite, anhydrite rock, salt gypsum and sylvine usually exist at the same time.
As the classic powder grinding machine, Raymond mill is totally suitable for grinding dolomite and it can be ground to 600 meshes to satisfy the general grinding requirement of dolomite.
Hongxing stone flour mill has reliable quality and can process the stone materials into 613-440 micrometer (0.613-0.44mm). Working together with analytical engine and draught fan can satisfy different requirements of different client.
Hongxing Machinery is a famous Raymond mill manufacturer in China. There are limestone grinding mill, calcium carbonate grinding mill, and clinker grinder machine in Hongxing. The products all have great quality, perfect service and reasonable price. You can send an e-mail or leave a message to know more about the machine.
Model | 4525 | 4119 |
Feeding Size(mm) | ≤30 | ≤25 |
Output Size(mm) | 0.173-0.044 | 0.173-0.044 |
Shift Output of Different Material Fineness(t) | 16-176 | 8-78 |
Rotation Speed of Central Shaft(r/min) | 82 | 105 |
Ring Diameter(mm) | 1770 | 1400 |
Roller Diameter(mm) | 450 | 410 |
Roller Height(mm) | 250 | 190 |
Main Motor | Y315M-4-132 | Y280S-4-75 |
Fan Motor | Y315M-4-132 | Y280S-4-75 |
Analyzer Motor | YCT250-4A-18.5 | YCT200-4B-7.5 |
