Feeding size: 35-60mm
Processing capacity: 12-360t/h
Processible materials: iron ore, copper ore, gold and silver ore, manganese ore, cement, artificial sand, fluorite, limestone, slag etc.
Application range: highway, high speed railway, high-rise buildings, municipal administration, water and electricity dam construction, concrete mixing plant.

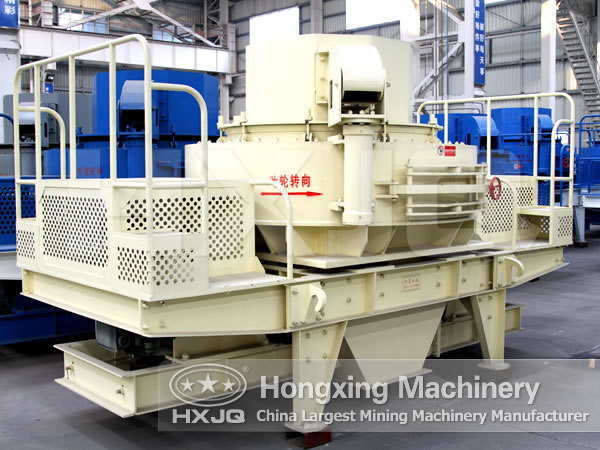

Sand maker is suitable for the crushing of soft, hard and extremely hard material and reshape of those products, which can be used in some areas of ores, cement, refractory, aluminum where the soil clinker, emery, glass raw materials, mechanisms built stone gold slag, especially on the silicon carbide, silicon carbide, sintered bauxite, sand contour hard, special hard and corrosion-resistant materials whose output is higher than other types of crushers yield efficacy.
Hongxing sand production line is taking the leading role in the sand making industry. Sand production line can crush hard limestone, granite, basalt, river stone, etc, it solves the problems of the traditional sand making equipment that only can crush the soft rock less than 150MPa, and it is widely used in hydropower, building material, highway, city construction, etc.
1. The VSI sand maker has high washing cleanliness and causes no pollution or little sand loss during the washing process.
2. Designed with rational structure, novel seal structure, totally enclosed oil bath type gearing and adjustable overflow weir plate.
3. Very little medium sand, fine sand and stone powder loss during the washing process. The grading and fineness modulus of Artificial sand maker are all up to industrial standard.
4. Handling capacity is great and power consumption is low.
5. The Artificial sand maker saves water resources and causes no pollution. It is quite durable.
6. Easy to maintain and convenient to operate.
Model specification |
Max.feeding size (mm) |
Power (kw) |
Rotation speed of impeller (r/min) |
Capacity (t/h) |
Overall dimension (L×W×H) (mm) |
HX-06 | 35 | 2P 37-55KW | 2000-3000 | 12-30 | 2500×1620×2600 |
HX-07 | 45 | 4P 55-75KW | 1500-2500 | 25-55 | 2700×1760×2800 |
HX-09 | 50 | 4P 110-150KW | 1200-2000 | 55-100 | 3900×2000×3070 |
HX-10 | 60 | 4P 150-180KW | 1000-1700 | 100-160 | 4600×2350×3450 |
